  • WISP R22 Barrel Adapter Issue

    Jump

  • It seems to be a bit of play in both the barrel to the adapter and the adapter to the receiver. PLA+ adapter is providing the tighter fit with the PLA+ upper. I decided to wrap a couple layers of teflon tape around the barrel, but fewer layers around the pin holes in the barrel. It Is now a much tighter fit in the adapter. I actually added additional layers another two or three times after test fitting each attempt.

    I then wrapped the barrel adapter with a couple layers of teflon tape as well and it is much better than before. Instead of just under 1/2” horizontal sway of the barrel, it is now down to probably 1/8” or even less. It seems to be a tolerance issue…and that may be a result of the RS22 barrel itself since it was a $35 barrel shipped from Rossi. I further bubba’d it with a black ziptie around the barrel from each side of the end of the handguard and now it is really rocksteady. The two zip ties are pulling equally from both the right and left sides of the handguard. I know my experience is not what is intended, but it seems cable ties and pipe/duct clamps are a natural fit for 3D2A anyway.

    As for settings, I printed all the Polymaker PLA+ with 300BLK’ settings. Now I just need to get to a range to finally test it with live ammo, as dummy rounds are functioning quite well. Again, this has been an educational and fun project that reminds me of working out the kinks in the first P80 I built.

  • WISP R22 Barrel Adapter Issue

    Jump

  • Different issue, as I resolved the headspace issue by further filing the reinforcement plate…thanks for the clarifying feedback! I also removed the extraction issue after discovering a small burr on the underside of the extractor that needed to be filed down. My current concern deals with the amount of horizontal barrel sway with the RS22 barrel within the barrel adapter. I’ve printed in both PLA+ and PA612-CF, and both result in the barrel moving up to a half inch (or less) to the right and left. I discovered I needed to increase the supports angle to 31 to get the supports to properly print the reduction area within the adapter. The barrel naturally rests off center to the left…or the handguard and upper incorrectly sit off to the right. It’s like a brace is needed toward the end of the handguard to keep the barrel centered and free of sway. Or does the guide comment to JB Weld the adapter to the barrel also apply to OEM barrels and not just DIY barrels?

    This has been quite an educational build and makes me want to join a beta so I can learn even more from the development process.

  • WISP R22 Barrel Adapter Issue

    Jump

  • I’m not new to building guns from parts or from P80 kits, just 3D printed ones. I wasn’t sure how much to file the bottom of the reinforcement plate. I took the edge off, but now I understand the need to file it some, test fit, and file again if still too tight. I was worried about filing too much and it not stripping the next round…but this makes sense. I miss Reddit, but I do appreciate this site and I greatly appreciate your feedback! If nothing else, this gets more discussion going regarding the Wisp…as there isn’t too much about it online and it seems like a really neat project. I’ve had fun so far, but should’ve stuck with Polymaker. I’m not as much a fan of the 3D Fuel filament.

    As for the Rossi barrel, it was hard to pass up a threaded RS22 barrel for $37 shipped as part of their BF discounts.

  • General Discussion @forum.guncadindex.com
    Wyno

    WISP R22 Barrel Adapter Issue

    I first printed everything out of 3D Fuel PLa+ and when I assembled it and I inserted a 3D printed CMMG replica 22 mag, it snapped off the feed ramp at the base of the ramp. OK, so I’ll print the barrel adapter out of Fiberon PA612CF, anneal it for 12 hours, and let it sit out for moisture. Assembled everything today and the bolt wouldn’t fully close at first until I forced it closed. And…the feed ramp split at the base of the ramp again. It looks like the bottom of the metal reinforcement plate is striking the top of the feed ramp, as the Fiberon version now has a dent.

    Another odd thing with both, the adapter pin holes for the handguard don’t anlign evenly with the cuts in the RS22 barrel. There is maybe an 1/16” (or less) of the barrel that shows on the feed ramp side of the pin holes. It takes a hammer to get one of the pins through both holes and the barrel cutouts. Additionally, dummy rounds would eject with the PLA+ barrel adapter but not the Fiberon one.

    Anyone else

  • Diff Galileo R2 pistol length hand guards?

    Jump

  • It was a surprisingly easy build. The biggest challenge for me is always arranging things on an A1 mini’s build plate. The optic cost more than the build, but I really like the PA GLx2 optics. Combined, it cost about the amount of a Ruger Charger for just the gun itself though.

    The Wisp is quite a bit more complicated, as the guide is rather brief on how to actually assemble some parts. But I’m still printing parts for the stock and awaiting some more parts to fully assemble.

  • Diff Galileo R2 pistol length hand guards?

    Jump

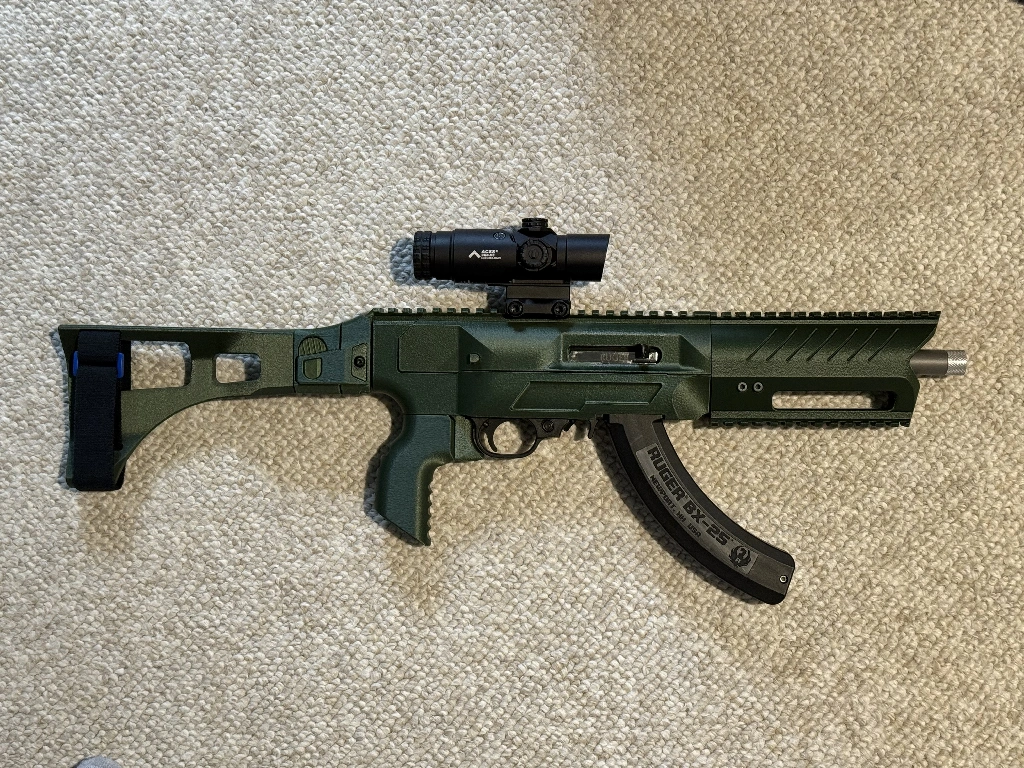

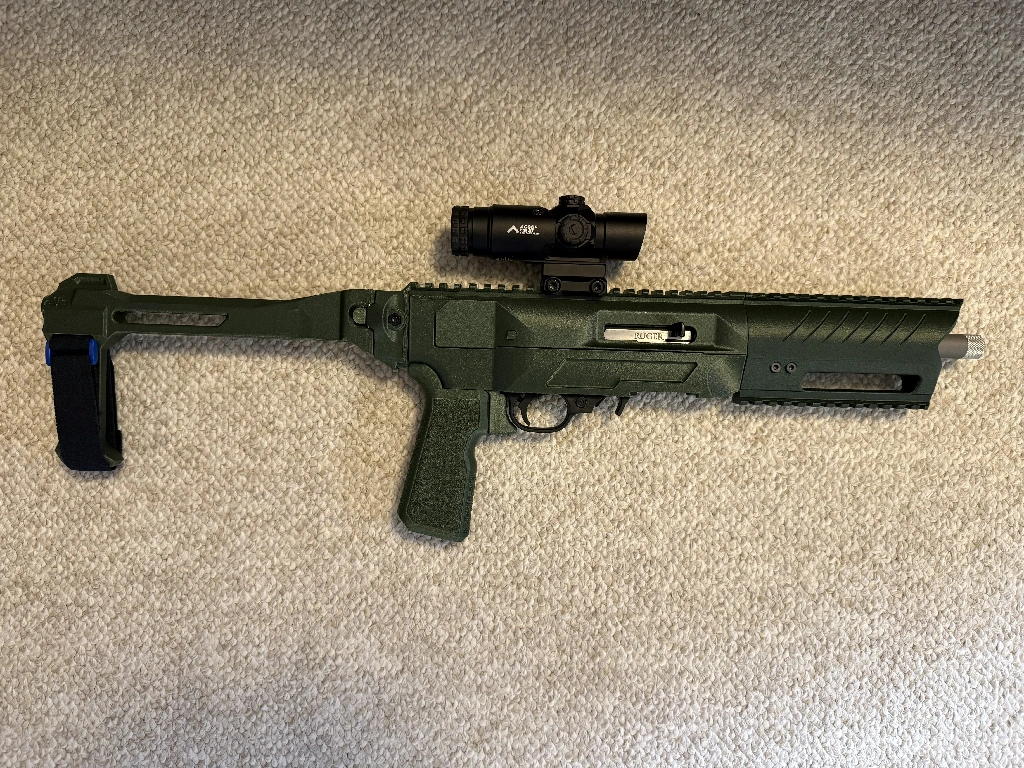

  • Here is the Remix 3 on an 8” BA barrel. I went with a different brace, which was the longest I could fit on an A1 Mini…and I had to trim the pic rail on the lower to get it to fit. But it provides an extra inch length over the better looking Sauerkraut (photo also included).

  • When will they learn ??

    Jump

  • I’m not intimidated, just can’t figure out how to get guncad on it…as well as the weird sign in that pulls up unrelated communities or whatever. If someone could do a walkthrough video on how to setup a lemmy app to connect…it would probably be helpful. I just use the website instead, as forums are a welcomed old friend for me.

  • Kaewon's Wisp in action

    Jump

  • Just came back in stock and code BF2025 brings the cost down to $35 + tax and FS. $37 for a barrel shipped to FL is hard to beat.

  • Printer Recommendations

    Jump

  • FYI, there are multiple posts and videos of a concerning fire risk with the way the USB attaches to something…maybe printer head? Anyway, it bends and causes fraying which is a fire risk. They offer replacement cables, but that is something to research before investing in a CC, as the replacement cable will Eve fray as well. There are alleged printable fixes, but I don’t know that they resolve the issue. The CC2 looks weird. My research has caused me to now focus on the Qidi Q2 or eventual P2S as an upgrade/addition to my A1 Mini.

  • POLYMAKER Sale 35% Off + Free Shipping

    Jump

  • Coupon NICOLEFISCUS10 stacks for another 10% off.

  • Hey Hey Hey guys, Im Back!!!

    Jump

  • Did I miss the release of your PLA settings?
